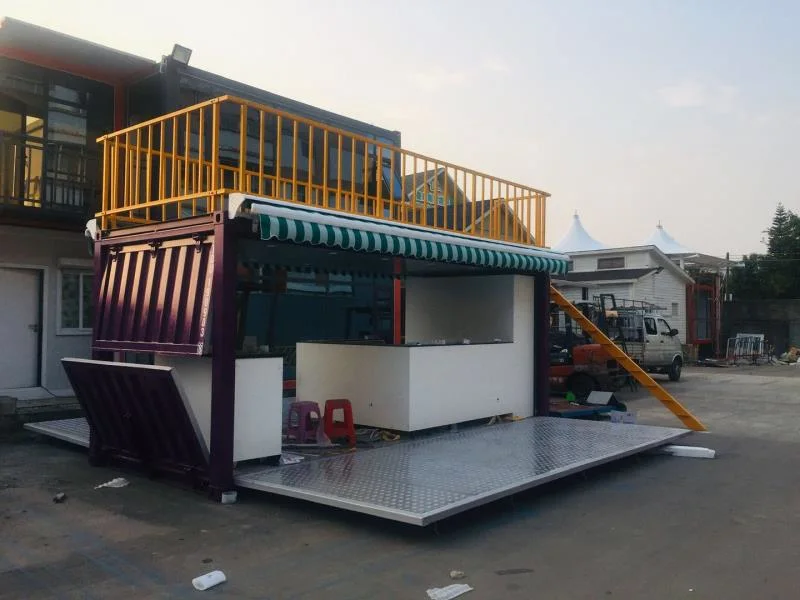

Mobile Shipping Container 20ft Cafe/Coffee house/Kiosk/Shop
Product Paramenters
Specification of Raw Materials
Manufacturing Process
Successful Case
Certifications
FAQ
Product Paramenters
| Technical Parameters | Description | ||
| Product name | Prefab Cafe House | ||
| Country of Origin | Guandong, China | ||
| Color | customized | ||
| Design | Flexible design | ||
| Materials | Steel and sandwich panel | ||
| Transportation | By sea | ||
| Brand | GUIZU | ||
| uses | residential and commercial | ||
| Frame | Welded/ Hot rolled H beam | ||
| Size | 20GP/40GP/40HQshipping container reconstruction or customized | ||
| Interior decoration | customized | ||
| Certification | ISO,CE,SGS | ||
| Wall and Roof | EPS or glass wool panel or rock wool | ||
| Window | PVC or Aluminum Alloy | ||
| Steel standard | Q235 | ||
| Wind load | <35m/s | ||
| Earthquake resistance | 7 fission resistant | ||
Specification of Raw Materials
| item | EPS | Glass Wool | TPS Board | Rock Wool |
| waterproof | ★★★★★ | ★★★ | ★★★★★ | ★★★ |
| fireproof | ★★ | ★★★★★ | ★★★★★ | ★★★★★ |
| Heat Insulation | ★★★ | ★★★★ | ★★★★ | ★★★★ |
| Sound Insulation | ★★★★ | ★★★★ | ★★★★★ | ★★★★ |
| Price Comparison | ★★ | ★★★ | ★★ | ★★★★ |
| Density Range | 10-14kg/m3 | 100-120kg/m3 | 40-200kg/m3 | 100-250kg/m3 |
| Accessories Name | Description |
| Ground Beam | 14#/16# H-beam, 12# channel steel; 100*100*3.0 /150*75*3.0 / 120*60*3.0galvanized steel tube; 120*120*3.0 / 150*150*3.0 bending parts |
| Pillar/Column | 100*100*3.0 /150*75*3.0 / 120*60*3.0galvanized steel tube; 120*120*3.0 / 150*150*3.0 bending parts |
| Floor beam | 100*100*3.0 / 150*75*3.0 / 120*60*3.0 / 60*60*2.0 galvanized steel tube; 60*60*3.0 / 120*120*3.0 / 150*150*3.0 bending parts |
| Floor Purlin | 8# channel steel; 80*80*2.0 / 50*100*2.0 / 40*80*2.0 galvanized steel tube |
| Stairs | 150*30 C-type steel |
| Walkway Board | anticorrisive woods |
| External Wall | 0.8mm/1.5mm/2.0mm Corrugated galvanized steel board; 0.46mm pre-painted galvanized steel board |
| Internal Wall | 0.46mm / 0.36mm / 0.26mm pre-painted galvanized steel board |
| Roof Panel | 0.8mm/1.5mm/2.0mm Corrugated galvanized steel board; 0.46mm pre-painted galvanized steel board |
| Edge | PVC capping seal, bamboo and woods fiber capping seal |
| Floor | Glass magnesium board, PVC composition tile, ceramic tiles |
| Window | Sliding window, casement window, hanging window, double-glazed glass window(thickness can be customized) |
| Door | Security door, plastic steel door, steel door, stainless steel door |
Manufacturing Process

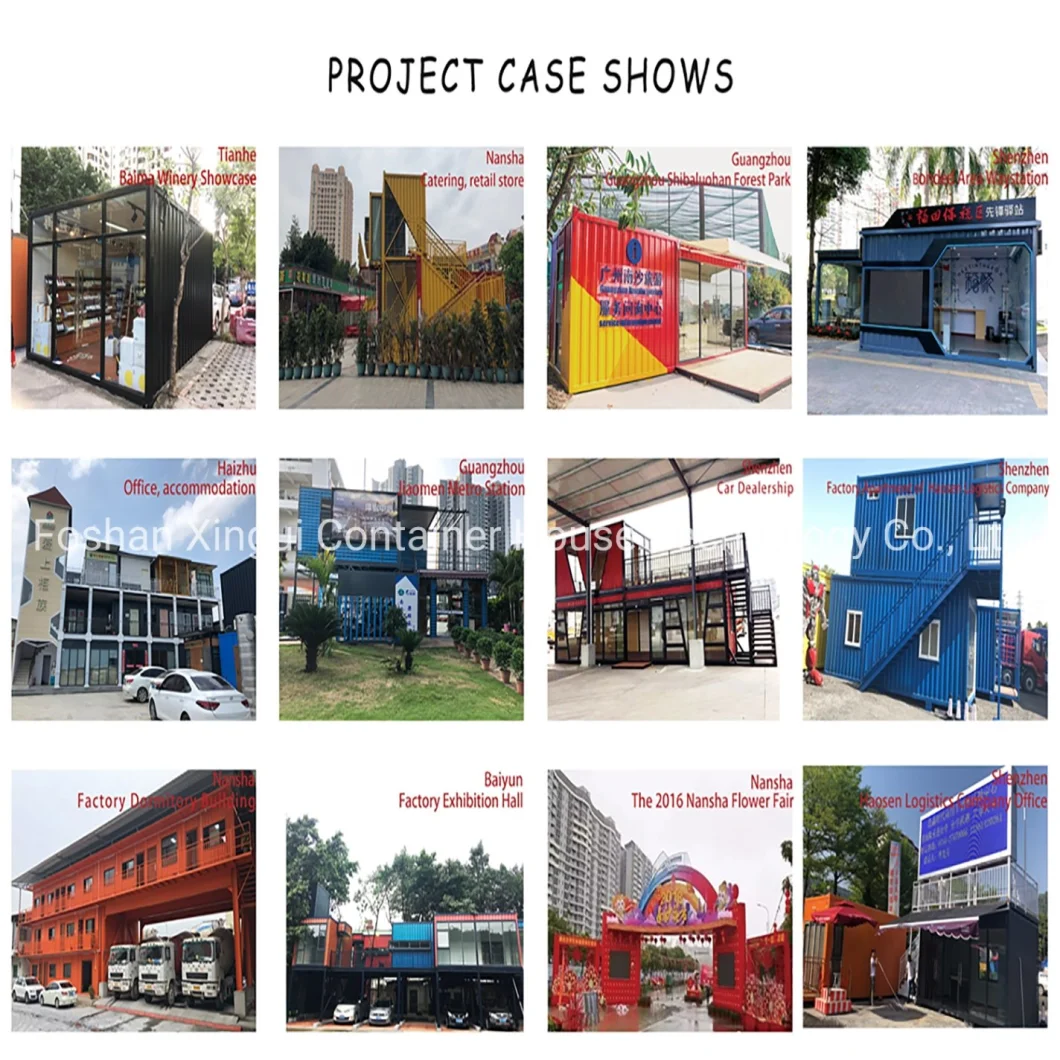

Successful Case
